Choosing a quiet fan with jet physics

Working draft. The physics below is real, and the fan figures come from manufacturers’ catalogues and independent reviews (ETM Testmagazin, mybest, Expert Reviews, Trusted Reviews, TechGearLab). None of it is my own measurement yet, and the long-range numbers are model extrapolations, not data. I would rather publish the method early than polish it in private.

I want a fan that moves air across a room without sounding like one. The marketing numbers (CFM, dB at some unspecified distance) do not say much about how it will feel three metres away. A cleaner way to think about it is to treat the fan outlet as a turbulent jet and ask what physics sets how far it carries.

A short physics lesson: the equations air obeys

Everything below rests on one set of equations, so it is worth meeting them properly. Air in a room moves slowly compared with the speed of sound, so we can treat it as incompressible, and then its motion is governed by the Navier–Stokes equations:

∂u/∂t + (u·∇)u = −∇p/ρ + ν∇²u + f,    ∇·u = 0

Read it as Newton’s second law for a small parcel of air, per unit mass. On the left is how the parcel’s velocity u changes: partly with time, and partly because it is carried into a region where the flow is different (the (u·∇)u term). On the right are the forces that cause that change: pressure differences (−∇p/ρ), viscous friction (ν∇²u), and any body force f, such as a fan pushing or cold air sinking. The second equation says no air is created or destroyed: whatever flows into a region flows out.

Which of those terms actually matters? Scale everything by a typical speed U and size L, and the equation becomes

∂u*/∂t* + (u*·∇)u = −∇p + (1/Re)·∇²u

so the only thing that decides the kind of flow is a single number in front of the viscous term.

Here is Re for the flows that matter in our house:

At high Re you might think viscosity simply drops out. It does not, quite. Turbulence passes energy from big eddies to smaller ones (the energy cascade) until the eddies are so small that viscosity can finally turn their motion into heat.

The practical consequence is lovely: once a jet is turbulent, its spreading is set by its own eddies, not by the air’s viscosity, so the jet’s shape stops depending on Re at all. Here is Re for a 12 cm outlet at various speeds, just to show how quickly we leave the laminar world:

One more force matters in a house with an air conditioner: cold air is heavier than warm air.

Momentum wins, viscosity barely matters

For a turbulent round jet, the far field is self-similar and independent of Re. The centreline speed falls as

u_c(x) ≈ B·d·U / x, with B ≈ 6.2

so what matters is the product of outlet diameter and outlet speed, i.e. the momentum flux.

The trade that makes a fan quiet

Thrust (momentum flux) is T = ρ·(π/4)·d²·U². Hold it fixed and the throw, which scales as d·U, does not change with diameter at all: a bigger, slower outlet delivers the same punch down the room. Noise, however, rises steeply with speed. Using a rough U⁶ scaling for broadband fan and jet noise as a stand-in:

Here is the same idea as something you can play with. The particle jet is the far-field model above, with the spreading rate of a real turbulent round jet. Hold the thrust constant and drag the diameter: the yellow line (where the breeze drops to a just-noticeable 0.5 m/s) barely moves, while the noise figure falls away.

So the shopping heuristic is: maximise outlet area for the thrust you need, then check the motor and blades are not adding their own whine.

The real question: getting the cold air down the hall

The free-jet picture says what a fan can do in open air. Our actual problem is a house: one split system on the dining room’s north wall, and bedrooms down a hallway that the cold air never seems to reach. So I took the floor plan from the digital twin of the house, with its walls, doorways, kitchen joinery and the default furniture layout, and ran a 2D airflow simulation on it, right here in the page.

What it shows, averaged over the second half of 45 simulated seconds (AC at 3.5 m/s, fan at 4.5 m/s):

Three things jump out.

1. On its own, the split system’s air stays in the dining and living room. The jet hits the floor-to-ceiling obstacles (fridge, island, sofa) and curls back on itself. The hall is effectively dead air.
2. One fan in the right place changes that completely. Pointed south through the gap east of the kitchen, it sets up a loop: down through the gap, west along the hall, back up through the retreat into the dining room, where the AC tops it up again. The retreat route works too, but more of its push is spent in the retreat itself.
3. Bedrooms are dead ends. Even with every door open, almost nothing flows through a bedroom, because there is nowhere for the air to come out. A second fan in the hall aimed straight into the Bed 2 doorway lifts that room’s average from 0.01 to 0.05 m/s, but it is a local swirl of hall air at the door rather than a supply of cooled air, and it partly fights the first fan. Getting conditioned air into a bedroom needs a through path (a door undercut or transfer grille plus a fan pushing in) or a head in the room. Try it yourself: choose “Place your own fan”, then press in the hall and drag towards a bedroom door.

This is a 2D, depth-averaged slice, so it is honest about where air can go but not about the ceiling: a real split-system jet hugs the ceiling (the Coandă effect), and cold air sinks as it slows. Tall things like the fridge block most of the slice; low things like beds and the dining table only add drag. The solver is a lattice Boltzmann method with a Smagorinsky turbulence model, running in a Web Worker in your browser. The return air the split system draws in from the ceiling is modelled as a gentle sink around the head.

Into the bedrooms: the same house in 3D

The 2D slice can’t answer the question I actually care about: how much of the cooled air ends up in a bedroom. A doorway is a 3D thing. Air can come in over the top and leave along the floor, or the other way round, and a split system’s jet runs along the ceiling. So here is the same house again, this time as a full 3D simulation: every wall, door head, the fridge and its bulkhead, the furniture, and a 2.59 m ceiling, with the AC as a real slot of air on the north wall of the dining room.

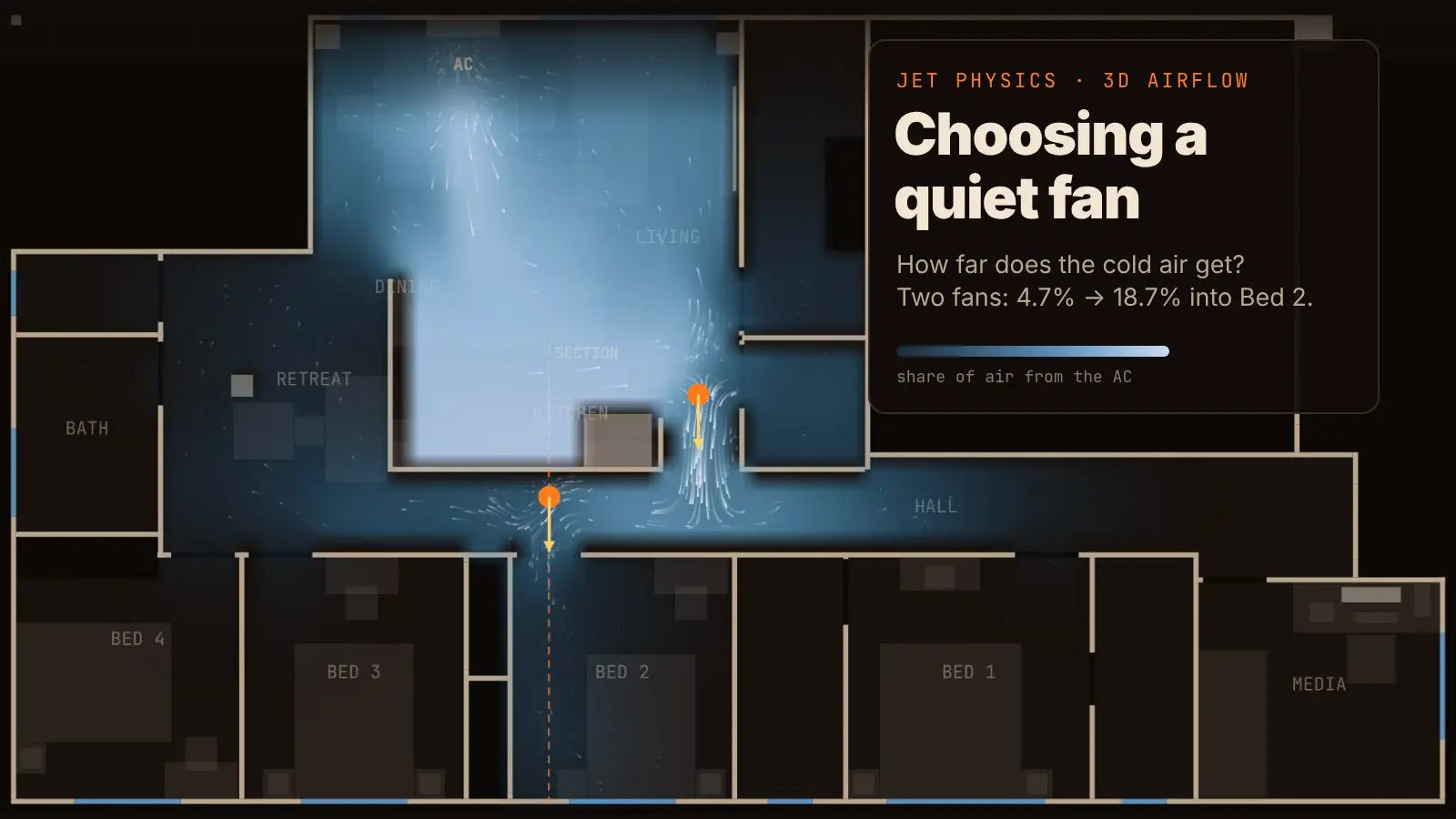

The top view is a plan cut through the occupied zone. Below it is a vertical section through the bedroom door you pick, so you can watch air cross the doorway at different heights. Colour by “AC air” to see where air that has passed through the split system has got to. Each room card shows its share, its average speed, and how many litres a second go through its door.

The solver is a D3Q19 lattice Boltzmann model with the same Smagorinsky turbulence closure, on about 31,000 air cells of 22 cm. A phone gets a coarser grid of 26 cm. Fans are actuator discs. A closed door is a solid leaf with a 12 mm undercut. The AC air is tracked as a dye, and can optionally be treated as 8 °C colder than the room so it sinks.

Two minutes of simulated time, AC at 300 L/s with the louvre angled 15° down, cold air on, fans at 4.5 m/s from a 25 cm outlet 0.9 m off the floor. The figures are the share of air in the occupied zone (0.1 to 1.8 m) that has been through the AC:

What I take from it:

1. The AC jet does hug the ceiling. With the louvre level, the fastest air 2 to 4 m out is in the top cell, at 2.5 m. Angle the louvre 15° down and the cold air starts to drop by about 4 m out. This is the Coandă effect, which the 2D slice could not show.

2. With the AC alone, cold air pours into the bedrooms along the floor. Each open doorway trades about 50 L/s: cool hall air flows in low and warm room air flows out high. It is a slow, buoyancy-driven exchange, and two minutes in the bedrooms are still under 2% AC air.

3. One hall fan aimed at a doorway doubles that room’s share. It pushes about 670 L/s through the middle of the doorway, and the air returns along the floor and under the door head. But it can only move the hall air it has, and the hall is only 19% AC air.

4. A second fan at the kitchen gap doubles it again. Pushing the dining room’s air down the hall first makes the hall fan’s air colder. Bed 2 goes from 4.7% to 18.7% in two minutes. The other bedrooms barely change, so this is a strategy for one room at a time.

5. Shut the door and the fan does nothing for that room. A 12 mm undercut passes about 1 L/s and there is no path back out, so the room is sealed off from the AC.

Honest limits. The grid is coarse: there are only two cells above a door head, and a fan disc is a single cell, so its total push is right but the near field is crude. The ceiling is modelled as slip, because at this resolution a no-slip ceiling would not let the jet attach. “AC air” counts anything that has passed through the AC since the start, with no heat gained from the rooms, so it is a measure of mixing, not temperature. It is a model to rank options against each other, not to predict the thermostat.

Which fan? Separating data from extrapolation

I started with Dreo’s shortlist and ended up reading every independent fan test I could find: 52 fans, 108 measurement rows. Most are useless for this question, and it is worth being clear about why before looking at any chart.

The other trap is distance. Most reviewers measure air speed at 1 m, which tells you about the outlet, not the throw. Only one tester measured at hallway distance: mybest, at 6.1 m (20 ft), with the strongest reading taken from a grid of 36 points and noise at 1.5 m.

At hallway distance: 6.1 m

This supports what I suspected about the big-brand circulators. A Vornado 7803 at full power gets 2.44 m/s to the far end of a 6 m room and makes 62.5 dB doing it; the Dreo CF714S gets 2.75 m/s for 54.9 dB. Eight decibels is the difference between “fan noise” and “a fan you can sleep next to”. Most of Vornado’s range here uses AC motors (the 460, 560, 630, 633, 660, 683, 7503, 7803); their DC models (533DC, 633DC, 683DC, 5303DC, 6303DC) cost more and were not in this test.

Up close: the quiet envelope at 1 m

At 1 m there is much more data, including every setting of three Dreo circulators (ETM Testmagazin) and spot readings from Expert Reviews. Each line is one fan walking through its speed settings.

A few things this teaches:

• Noise climbs much faster than air speed. Fitting the 513S’s settings gives noise rising about 43 dB per tenfold increase in speed, so sound power goes roughly as speed to the fourth power (the 502S fits closer to the fifth). Textbook fan-noise scaling says 5 to 6. The practical rule: running a bigger fan slower beats running a small fan flat out.
• Power is cheap, noise is not. The 513S draws 2.9 W at speed 1 and 25 W at speed 8: about 2 cents a day at the bottom and 18 cents flat out, around the clock. The cost you pay for air is decibels, not electricity.
• Fans are curves, not points. A spec sheet gives one number for the top speed; what matters at night is the bottom-left of each curve.

353 vs 512: the two Dreos you can actually buy here

These are the two models sold locally (A$159.99 and A$189.99 on amazon.com.au), and I now own a 512. Annoyingly, neither has any independent measurement, so this part is the jet model on Dreo’s own claims. The 353 has the faster claimed outlet (7.92 vs 7.62 m/s), so it wins right at the fan. Far away, centreline speed scales with outlet speed times outlet diameter, so the bigger 512 should catch up. By how much depends on what you take the outlet diameter to be:

• Rotor estimate. Treat the rotor as the outlet. U·d is 1.41 for the 353 and 1.74 for the 512, so the 512 carries about 24% more speed in the far field.
• Momentum estimate. Use the catalogue airflow and speed: momentum flux ρQU is 4.5 N for the 353 and 4.7 N for the 512, only about 2% more. The implied outlet is bigger than either rotor, so the catalogue CFM probably includes entrained air.

A word of caution on models like this: one French review reportedly measured a 765S dropping from 4.8 m/s at 1 m to 0.3 m/s at 7 m, far below what any free-jet formula predicts. Oscillation, aim and room recirculation all eat throw. That is exactly why the hallway needs measuring, and why the house simulation further up matters more than the jet formula.

Prices, and a warning

Delivered in Australia in October 2026, the picture is lopsided. The 353 (A$159.99) and 512 (A$189.99) are sold locally on amazon.com.au. Vornado’s AC circulators are A$150 to A$250 and the DC ones A$200 to A$350. The Dreo models with the best measured data are not sold here at all: a 765S comes to roughly A$400 or more delivered from amazon.com, which was the only store that would ship it, and a positioning-based Dreo “Intelligent Fan” (most likely the 707S) appeared on amazon.com.au at A$389.60, only after I asked Dreo about Australian availability:

Watch out for fake “Dreo Australia” stores. While shopping I found several sites pretending to be Dreo’s Australian store; I reported them and Dreo had some taken down. Dreo’s own brand-protection page warns about the dreo-[country].com pattern, and it lists no official Australian shop. If a site offers Dreo fans in Australian dollars at a discount, assume it is a scam and buy through a marketplace you trust.

Where that leaves me. The measured data favours DC-motor circulators with big rotors run slowly, and on the evidence the Meaco Sefte Pro 10 and the Dreo 7xx family sit on or near the frontier. The two fans I can buy cheaply here (353 and 512) are unmeasured, so the next step is obvious: measure my 512 in the actual hallway, at 1, 3, 5 and 7 m, against a sound meter, and put it on these charts.

What is next

1. Measure the candidate Dreo’s outlet area and real exit speed with an anemometer.
2. Replace the placeholder B and the U⁶ rule with measured decay and a dB(A) reading at 1 m, 3 m.
3. Check the 3D simulation against reality: a cheap thermometer in Bed 2 with one fan, then two.
4. Put the 704S/714S on the noise chart: measure air speed at 1, 3 and 7 m and dBA per setting, with the meter in the same place for every fan.
5. Measure air speed in the hall with the AC alone and with the fan in each spot, and put the measurements next to the simulation.
